Creating a First-Ever Animal Model of Brachytherapy-Induced Radiation Retinopathy

First step toward testing therapeutics

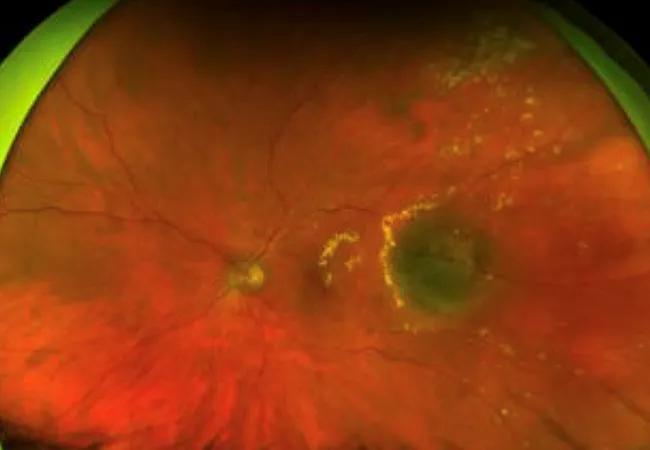

This color fundus photo of the clinical presentation of a left eye affected by radiation retinopathy shows multiple retinal exudates (yellow material) surrounding the irradiated tumor. Copyright image used with permission from Elsevir.

By Michael Ramos; Alex Yuan, MD, PhD; and Arun Singh, MD

Advertising Policy

Cleveland Clinic is a non-profit academic medical center. Advertising on our site helps support our mission. We do not endorse non-Cleveland Clinic products or services Policy

A patient is diagnosed with uveal melanoma. Thanks to therapeutic advances, enucleation is now a last resort. A multidisciplinary team of ophthalmologists and radiation oncologists develops a plan to treat the patient with targeted radiotherapy. They elect to use a radioactive plaque, a treatment known as brachytherapy, to deliver high-dose radiation to the tumor.

The tumor shrinks significantly. However, the patient develops the serious vision-impairing complication of radiation retinopathy.

Understanding the disease: Why we need an animal model

Radiation retinopathy is a broad term describing a spectrum of retinal changes following radiation exposure.

Classically defined by its vasculopathy, radiation retinopathy typically develops six months to three years following irradiation. It begins with preferential loss of endothelial cells, leading to vessel occlusion, leakage and retinal nonperfusion. As the disease progresses, retinal layers are compromised, further impairing vision. Late-stage radiation retinopathy is characterized by ischemia-induced ocular neovascularization.

Despite an established disease progression, the underlying pathophysiological mechanisms of radiation retinopathy remain unclear.

Treatments include risk-factor modification, such as:

  • Limiting the total dose of radiation delivered to the tissue.
  • Intravitreal injection of anti-VEGF and/or corticosteroids.
  • Laser photocoagulation to limit neovascularization.

Modest success has been achieved with these therapies. However, they fail to address the cellular and molecular events leading to radiation retinopathy, and prevention strategies remain limited.

The lack of elucidated mechanisms and dedicated treatment options demonstrates a clear need for more robust research. Similar to other retinal vasculopathies such as diabetic retinopathy, radiation retinopathy research can benefit from the mindful use of an appropriate animal model — a useful tool in the quest to understand disease pathologies.

Advertising Policy

Making the model

Despite its near 95% effectiveness and use as a first-line treatment in many cancers, episcleral plaque brachytherapy is commonly associated with radiation retinopathy.

Because no brachytherapy-induced radiation retinopathy animal model exists, we sought to establish one. It is our goal to set the stage for more mechanistic studies and eventually test promising therapeutics in a model closest to clinical experience.

Several factors need to be considered when establishing a radiation retinopathy model:

  1. Mode of radiation administration. Though technically challenging, we decided on a radioactive episcleral plaque, as one had not yet been described. Most of the previous models used external beam radiation in the form of x-rays.
  2. Type of ionizing radiation. The emitter used determines the penetrating power and the energy delivered to the tumor and surrounding tissue.
  3. Dose of radiation. Higher doses, measured in gray (Gy), result in greater retinal damage sooner after treatment.
  4. Differences in ocular anatomy between species (Figure 1). Factors such as lens size and vascular architecture may impact the development of retinopathy in different models.

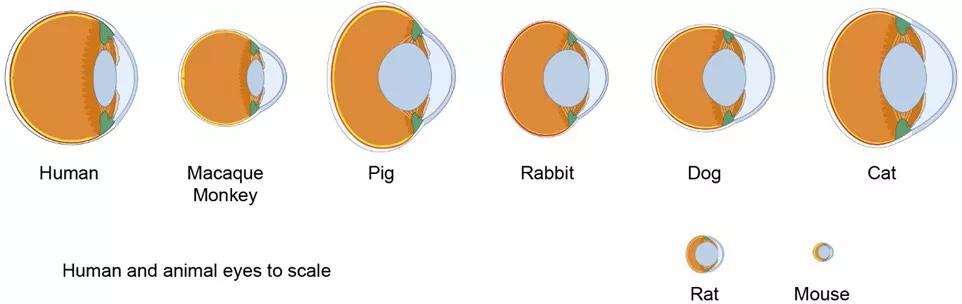

Image shows differences in ocular anatomy among various species.

Figure 1. Differences in ocular anatomy among various species must be considered when creating a model of radiation retinopathy.
Image from Ramos MS, Echegaray JJ, Kuhn-Asif S, et al. Animal models of radiation retinopathy – From teletherapy to brachytherapy. Exp Eye Res. 2019 Apr;181:240-251. Copyright 2019, with permission from Elsevir.

To create our model, a 1 mm by 4 mm radioactive iodine-125 seed was surgically implanted posterior to the limbus of the left eye of Lewis rats (Figure 2). The initial dose of radiation treatment lasted six hours, after which the seed was removed. A total dose of 45 Gy at a distance of 1 mm from the seed was delivered. Escalating dosages of radiation will be administered to find the optimal range.

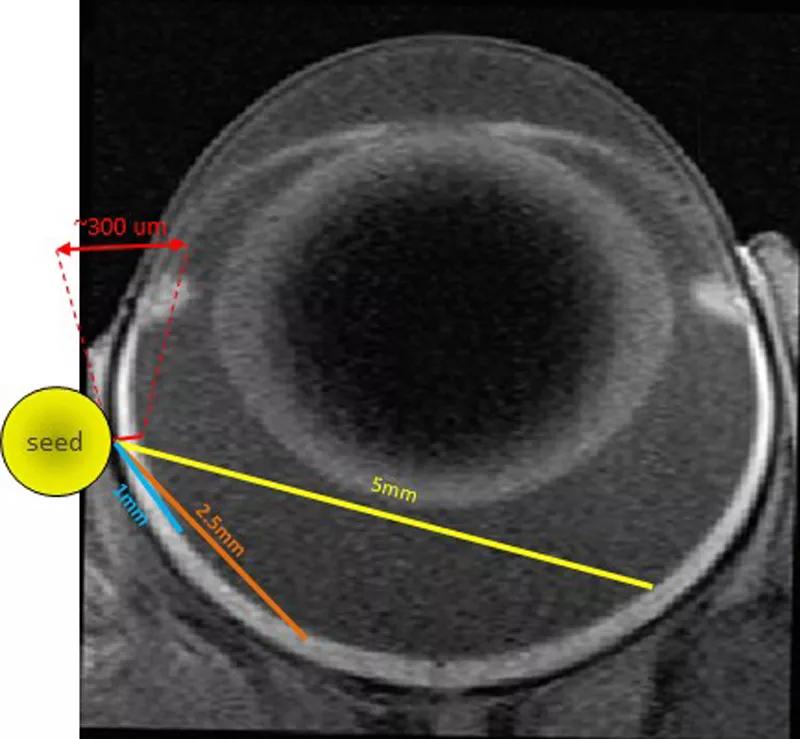

Image shows positioning of a radioactive iodine seed in the left eye of Lewis rat.

Figure 2. Placement of a 1 mm x 4 mm radioactive Iodine-125 seed surgically implanted posterior to the limbus of the left eye of a Lewis rat.

For 12 months, rats will be followed using optical coherence tomography (OCT) and wide-field fluorescein angiography (FA) to monitor the appearance of retinopathy (Figure 3). Based on previous reports using external beam radiation, most animals show signs of retinopathy (i.e., dot hemorrhages, cotton wool spots or retinal thinning) approximately six months after treatment.

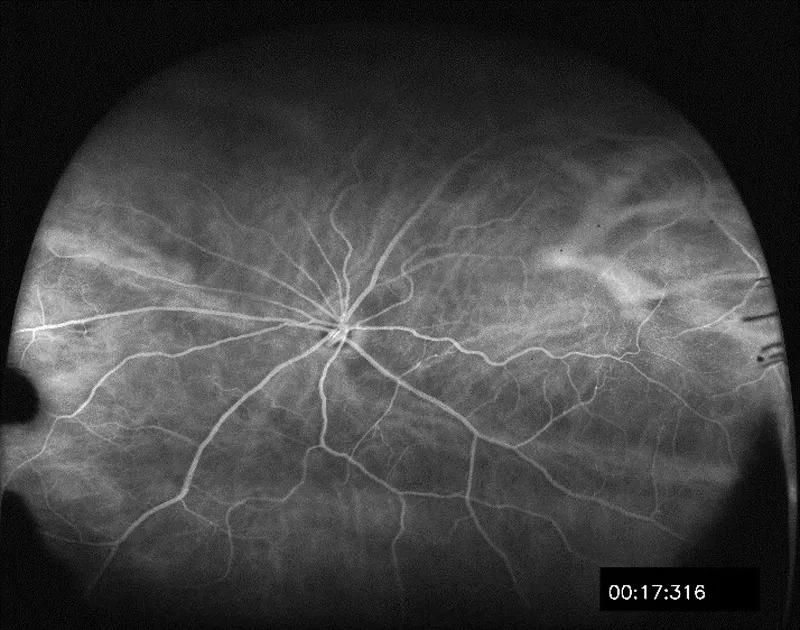

An image showing wide field fluorescein angiography used to monitor the development of radiation-induced retinopathy in a Lewis rat.
