Microcoil Localization: A Novel Way to Guide Resection of Nonpalpable Lung Nodules

MIS technique provides an alternative to watchful waiting or lobectomy

The use of CT to screen for lung cancer has enabled detection of lesions at increasingly smaller sizes. Yet that positive development brought along with it a clinical conundrum: “Until recently, patients with very small lesions were told that their only option was to wait until the lesion could be palpated before having it removed,” says Cleveland Clinic thoracic surgeon Daniel Raymond, MD.

Advertising Policy

Cleveland Clinic is a non-profit academic medical center. Advertising on our site helps support our mission. We do not endorse non-Cleveland Clinic products or services Policy

That was before the advent of an innovative procedure that’s rapidly changing the diagnostic and treatment picture for patients with very small nodules and ground-glass lung lesions. The procedure, known as microcoil localization or by several alternate names (nodule localization, needle localization, fiducial localization), allows thoracic surgeons to accurately resect these lesions in a minimally invasive fashion.

“We’re no longer dependent on lesions being palpable to pinpoint their location,” notes Dr. Raymond. “Wire localization enables us to localize questionable areas, remove them thoracoscopically and make a diagnosis.”

It takes a team

Percutaneous nodule localization is a complex technique offered at Cleveland Clinic and a small number of other U.S. centers. It requires close teamwork between a radiologist, who locates the nodule and places the microcoil, and a thoracic surgeon, who removes the lesion.

The primary team at Cleveland Clinic — consisting of Dr. Raymond, thoracic surgeon Sudish Murthy, MD, PhD, and thoracic radiologist Jason Lempel, MD — has performed the procedure on approximately 60 patients since February 2015. All Cleveland Clinic thoracic surgeons and one additional thoracic radiologist have since been trained on details of the procedure.

“Microcoil localization isn’t the first attempt at developing a technique to enable pinpointing of small lesions, but we have found it to be the best and most accurate option,” says Dr. Lempel.

How it’s done

Percutaneous microcoil localization and subsequent video-assisted thoracoscopic surgery (VATS) resection is performed in two stages:

  • Using CT guidance, the radiologist inserts a needle (preloaded with a soft, fiber-coated platinum thread) through the chest, into the lung and then into the target nodule. When the needle tip reaches the nodule, the thread is pushed out into the lung, allowing it to conform to its natural coil shape and thereby marking the location of the nodule. The radiologist then retracts the needle into the pleural space and deploys the opposite end of the coil at the edge of the lung before pulling the needle out of the body. The final configuration (Figure 1) resembles a dumbbell, with one end of the coil anchored along the nodule and the other in the pleural space connected by a metallic thread.
  • After the coil has been placed, the surgeon makes an incision for a thoracoscope and deflates the lung. The surgeon locates the coil in the pleural space and resects it along with a wedge of tissue (Figure 2).


Advertising Policy

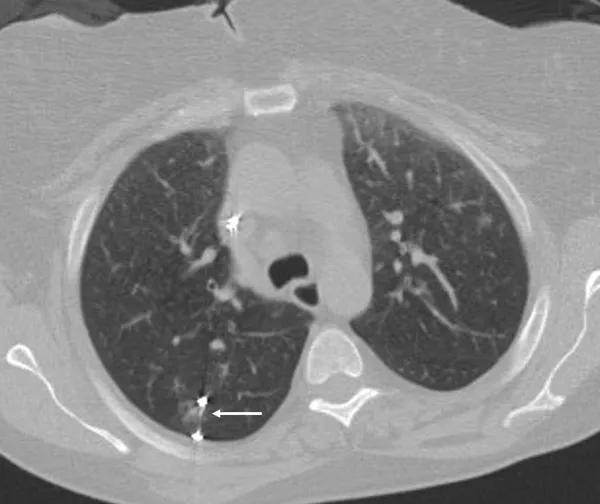

Figure 1. CT localization image showing a ground-glass nodule with a localizing microcoil (arrow) extending from the nodule back to the pleural surface and marking the nodule for subsequent VATS resection.


Figure 2. Intraoperative photograph showing a coil along the pleural surface (arrow) guiding the surgeon to the precise location for wedge resection.

At Cleveland Clinic, the resection is usually done without fluoroscopic assistance, as the radiologist tells the surgeon how many centimeters from the surface of the lung the distal end of the microcoil is located.

“We could use fluoroscopy to confirm that the cut is around the deep end of the coil, but it’s preferable to limit radiation exposure to the patient and surgical staff whenever possible,” Dr. Lempel explains.

In fact, a review of the team’s first 20 cases confirmed a 100 percent success rate in retrieving the target lesion with clear margins.

Where it’s done

The optimal environment for this complex procedure is still being worked out. Drs. Raymond and Lempel have tried two protocols.

Advertising Policy

In one, the patient is placed under conscious sedation and the localizing coil is inserted in the radiology suite. The patient is then transferred to the OR and anesthetized for the resection.

The alternate method — and their preference — is to perform both stages of the procedure in one of Cleveland Clinic’s hybrid ORs. This allows the patient to be anesthetized for the entire procedure, with the anesthesiologist controlling ventilation to obtain minimal motion of the lung during the procedure.

Advantages over lobectomy

No matter where needle localization is performed, its advantages are clear:

  • The need for biopsy is often eliminated. “It can be difficult to obtain enough tissue from a small nodule to do a biopsy,” explains Dr. Raymond. “By removing the entire nodule in a wedge resection, we can get the information we need to determine whether additional treatment is required and what that should be.”
  • It decreases OR time and the patient’s time under anesthesia.
  • It lowers the risk of conversion to open thoracotomy.

As the team continues to accrue experience with microcoil localizations, Dr. Raymond is cautiously optimistic about its long-term outcomes. “The classic treatment is lobectomy,” he says. “However, the probability of lymph node disease with these very small lesions is low, so a wedge resection may be all that’s necessary.”

“I believe microcoil localization will eventually eliminate the need for lobectomy and conversion to open thoracotomy in many of these situations,” adds Dr. Lempel. “We’re achieving clean margins with the minimal amount of tissue resected.”
